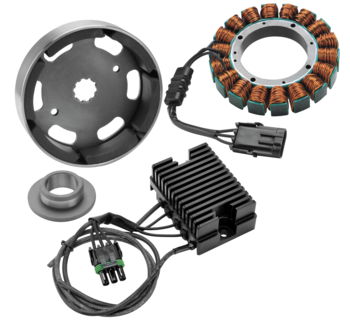

Compu-Fire 3-Phase Charging System:
Fitment ( Direct bolt in ):
- Harley-Davidson '03-'06 FLH, FLT, FXST, FLST, FXD, FXR, FX
- Carbureted, EFI (Fuel Injected models)
Specifications
- 40-Amp 3-Phase charging systems provide 25-Amps at idle and 40-Amps continuously above 2800 rpm
- Unique narrow rotor and stator combination fits Softail and Dyna primary cases
- Voltage regulator bolts on without any frame modifications
- Precision balanced vented rotor keeps the stator cooler in closed primary systems to maintain maximum output under all high current draw conditions
- Large flanged seal spacer provides maximum support for the rotor and the voltage regulator output is calibrated to 14.25-Volts from idle on up
- Made in USA
